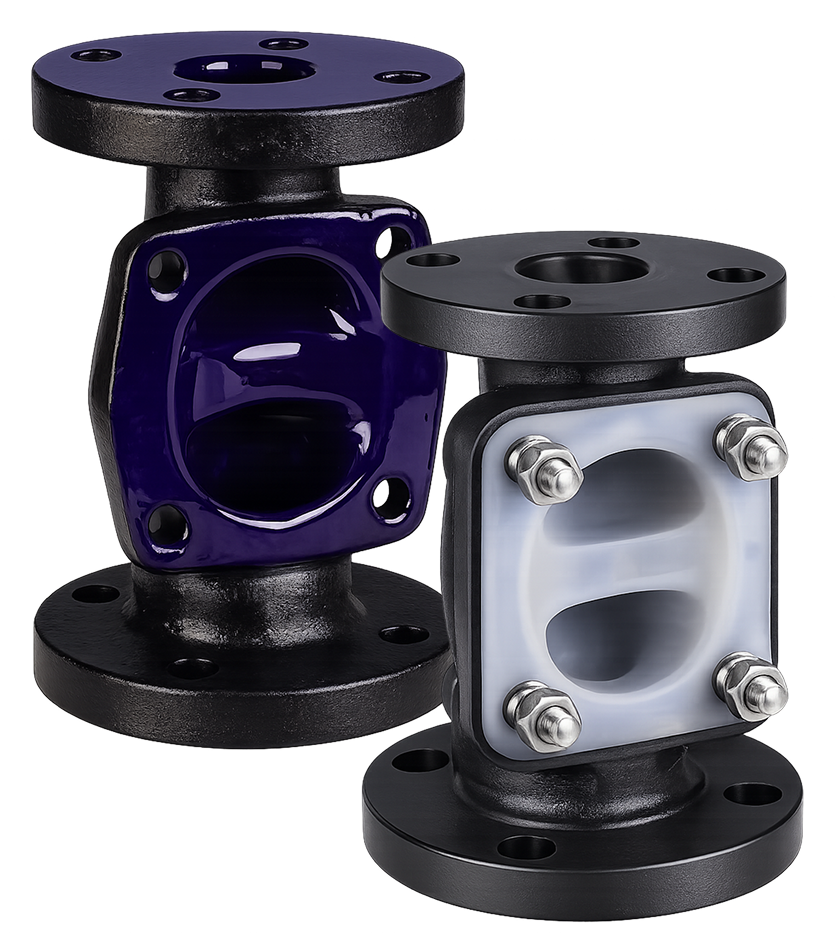

KDV BODIES
WEIR TYPE
KDV Weir Type Diaphragm Valves can be optimised for abrasive/corrosive services with a wide variety of base body materials, linings and coatings.
Body, lining & coating material selection is based on variables including: media type, temperature and pressure; frequency of thermal cycling, percentage of solids, particle size, end connections and valve size.
* Maximum continuous service temperature
| Material | End Connection | End Connection | Temperature | |
|---|---|---|---|---|
| Inch | MM | |||

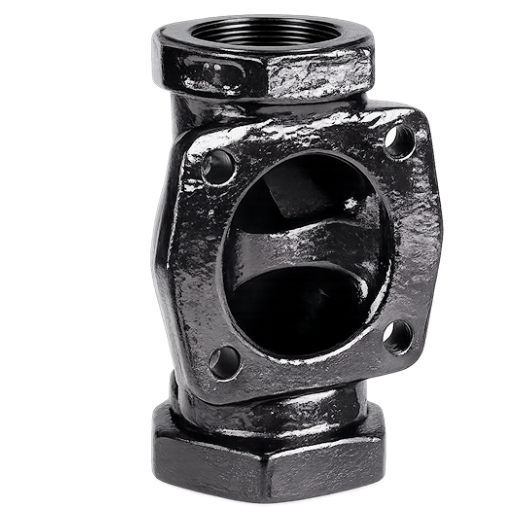

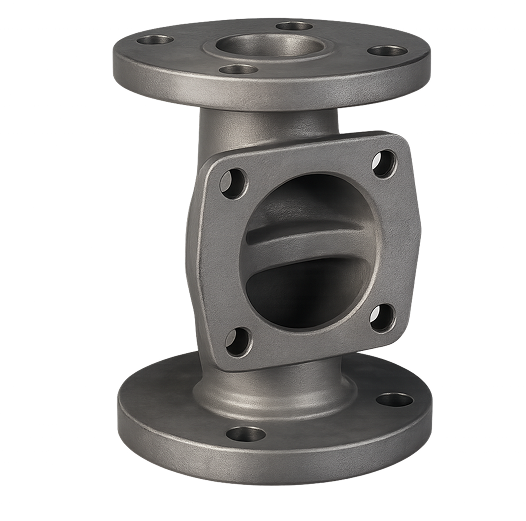

| UNLINED BODY Cast Iron Ductile Iron Cast Steel Stainless Steel Bronze | Screwed Flanged Screwed Flanged Screwed Flanged Screwed Socket Weld Butt Weld Flanged Screwed Flanged | 1/4” - 3” 1/2” - 14” 1/2” - 3” 1/2” - 14” 1/2” - 3” 1/2” - 14” 1/2” - 3” 1/2” - 3” 1/2” - 3” 1/2” - 14” 1/2” - 3” 1/2” - 14” | 8 - 80 15 - 350 15 - 80 15 - 350 15 - 80 15 - 350 15 - 80 15 - 80 15 - 80 15 - 350 15 - 50 15 - 150 | -10 - 175” -10 - 175” -10 - 175” -10 - 175” -30 - 175” -30 - 175” -30 - 175” -30 - 175” -30 - 175” -30 - 175” -30 - 175” -30 - 175” |

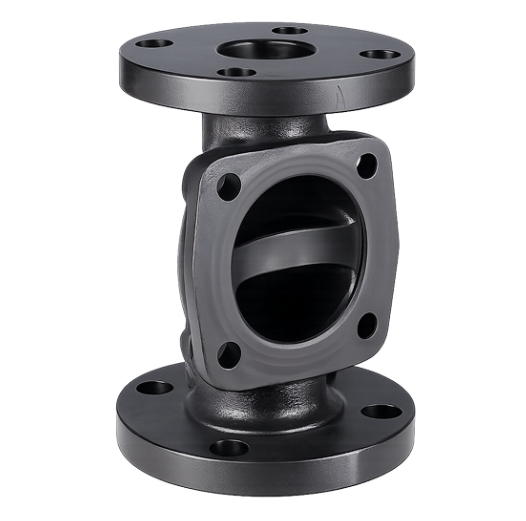

| RUBBERLINED BODY Soft Rubber Hard Rubber Butyl Rubber Neoprene EPDM Hyphalon Chlorosulphonated PE | Flanged Flanged Flanged Flanged Flanged Flanged | 1/2” - 14” 1/2” - 14” 1/2” - 14” 1/2” - 14” 1/2” - 14” 1/2” - 14” | 15 -350 15 -350 15 -350 15 -350 15 -350 15 -350M | -10 - 85” -10 - 85” -10 - 110” -10 - 105” -10 - 110” -10 - 95” |

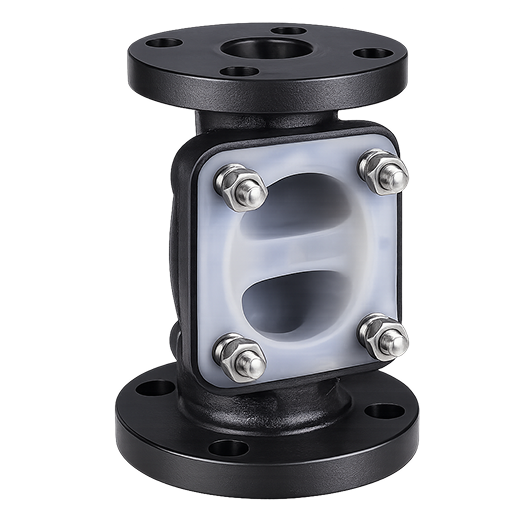

| PLASTIC LINED BODY ETFE (Tefzel) PFA PVDF PP | Flanged Flanged Flanged Flanged | 1/2” - 8” 1/2” - 8” 1/2” - 8” 1/2” - 8” | 15 - 200 15 - 200 15 - 200 15 - 200 | -10 - 149” -10 - 175” -10 - 140” -10 - 95” |

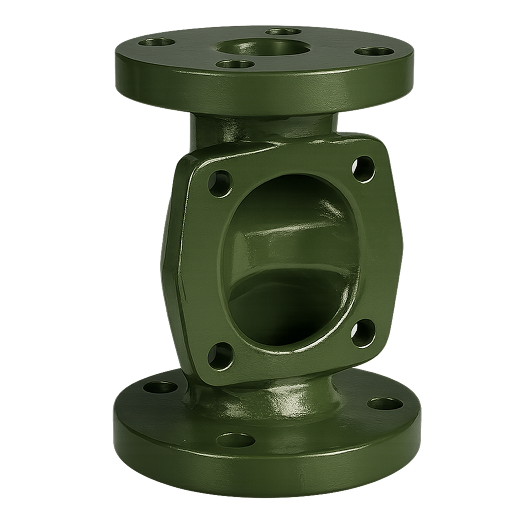

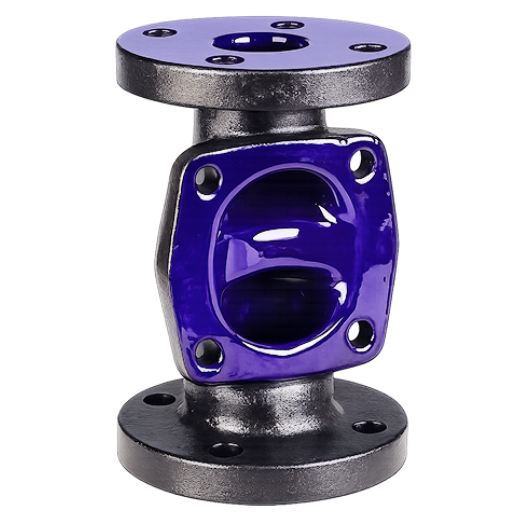

| COATED BODY Glass ECTFE (Halar) PVDF Nylon ETFE FBE | Flanged Flanged Flanged Flanged Flanged Flanged | 1/2” - 8” 1/2” - 14” 1/2” - 14” 1/2” - 14” 1/2” - 8” 1/2” - 14” | 15 - 200 15 - 350 15 - 350 15 - 350 15 - 200 15 - 350 | 175” 120” 130” 130” 90” 80” |

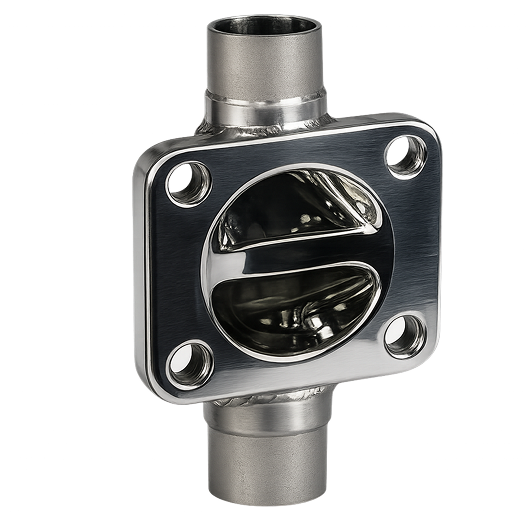

| HYGIENIC VALVE Forged ST Steel | Butt Weld Tri Clamp | 1/2” - 3” 1/2” - 3” | 15 - 80 15 - 80 | -10 - 175” -10 - 175” |
| SOLID PLASTIC UPVC, PP, CPVC, ABS, PVDF | Spigot / Screwed / Union Solvent Cement / Screwed / Flanged | 1/2” - 6” | 15 - 150 | On Application |
