KDV Plastic Lined

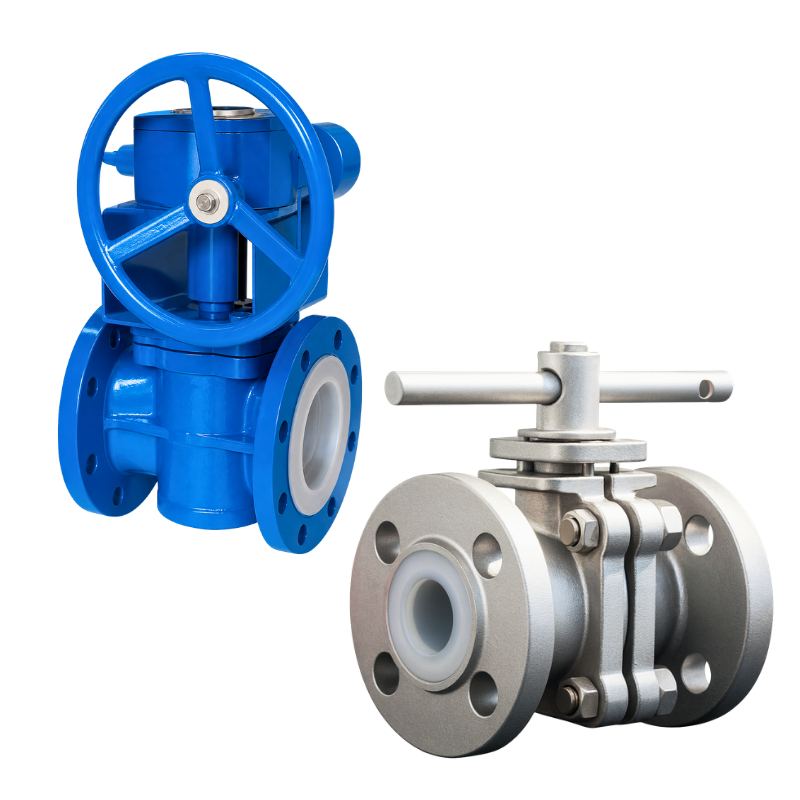

Plastic Lined Ball & Plug Valves
KDV Plastic Lined Ball and Plug Valves are designed for reliable performance in demanding process applications. The range features robust construction, PFA-lined components and sealing systems designed for dependable flow control.
The plastic lined design provides excellent resistance to mechanical and thermal shock while delivering reliable performance across a wide temperature range.
Explore our Plastic Lined Ball Valve for detailed features, applications and technical specifications.

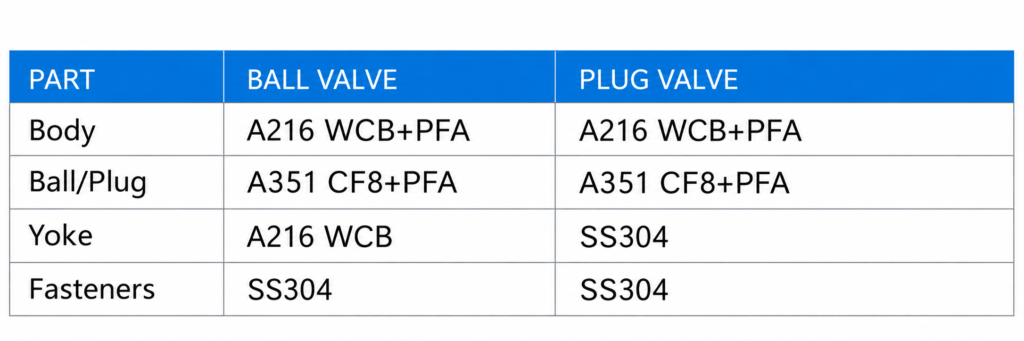

MATERIALS OF CONSTRUCTION
Operator Options
- Lever
- Gearbox
- Rack & Pinion Actuator
Flange Drilling Standards
- ANSI B16.5 Class 125 & 150
- EN1092 (PN10/16) (BS4504)
- JIS B2220
Face to Face
- ASME B16.10
Design Standard
- API 6D
- HG/T3704
Testing Standard
- API 598
