KDV Straight Through Type DIAPHRAGM VALVE

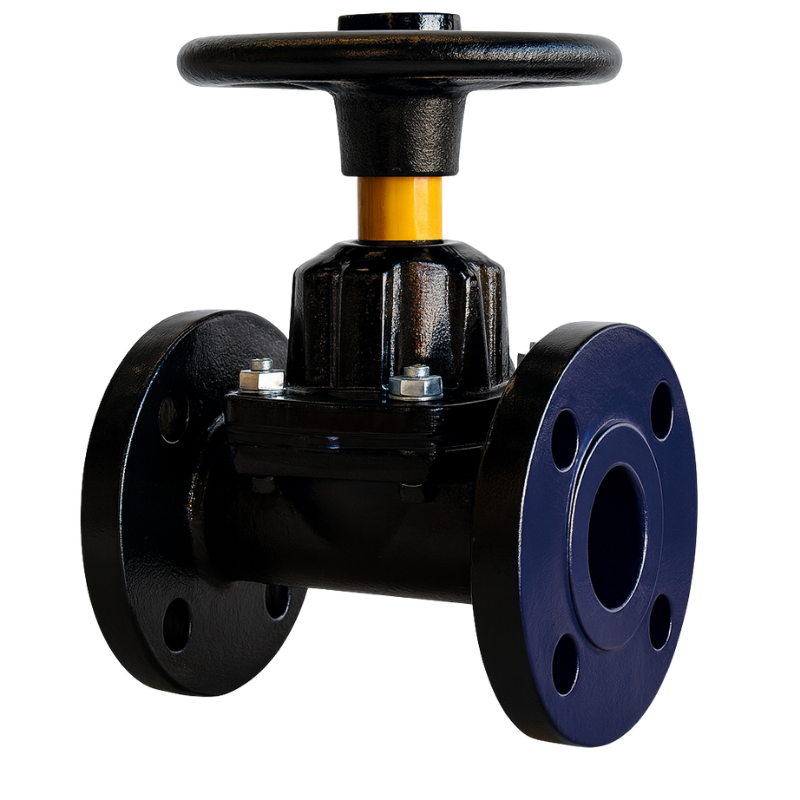

Glass Lined Straight Through Diaphragm Valve
KDV’s Glass Lined Straight Through Diaphragm Valve is designed for reliable flow control in applications involving slurries, acidic sludge and other demanding process media. Its straight-through flow path and borosilicate glass-lined body provide a durable solution for compatible industrial applications while isolating line media from the valve’s mechanical components.
FEATURES AND BENEFITS
- Bubble-tight shutoff (Class VI)
- Cavity free design
- Easy/low maintenance
- In-line serviceable (top entry)
- No stem seal leakage
- Standard Position indicator
Applications for Glass Lined Straight Through Diaphragm Valves
- Water and waste water
- Organic sludge
- Effluent treatment
- Lime solutions
- Acidic Sludges
- Slurries
Nominal Size:
DN25 – DN200
Face to Face:
BS, DIN, MSS
Flange Drilling:
ANSI#125/150, PN10/16, Table D/E, JIS
Pressure:
Up to 16 Bar (Elastomer Diaphragm)*
Up to 10 Bar (PTFE Diaphragm)*
*Max pressure varies across size range
Design Standards:
EN13397-2001 (BS5156:1985)
MSS SP88-1993-(R-01)
Testing Standards:
EN12266-1 2002(BS6755 Part 1)
MSS SP88-1993-(R-01)
DIAPHRAGM MATERIALS
10 – Natural rubber (NR)
20 – EPDM rubber
30 – Butyl rubber (IIR)
40 – Nitrile rubber (NBR)
50 – Neoprene rubber (CR)
60 – Hypalon rubber (CSM)
70 – Viton rubber (FKM/FPM)

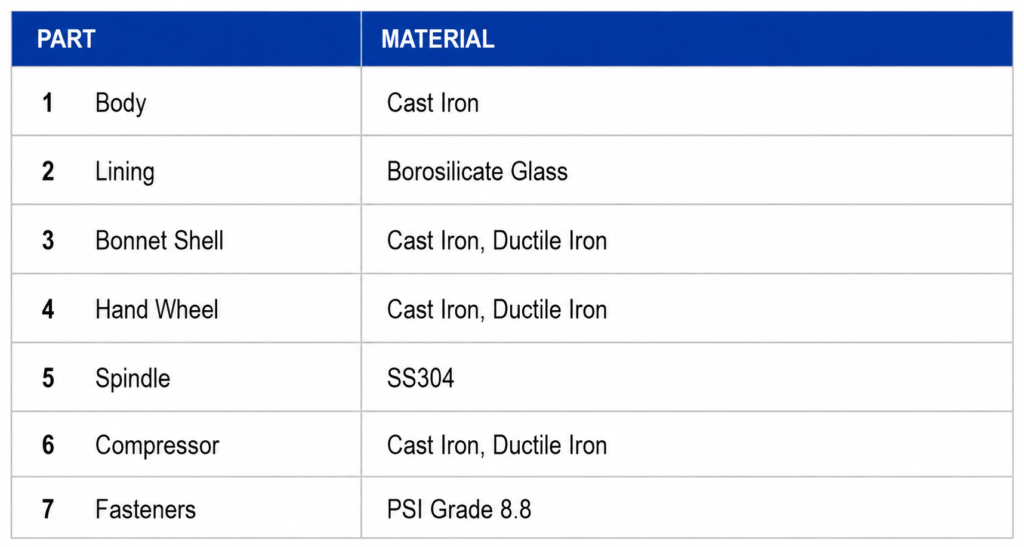

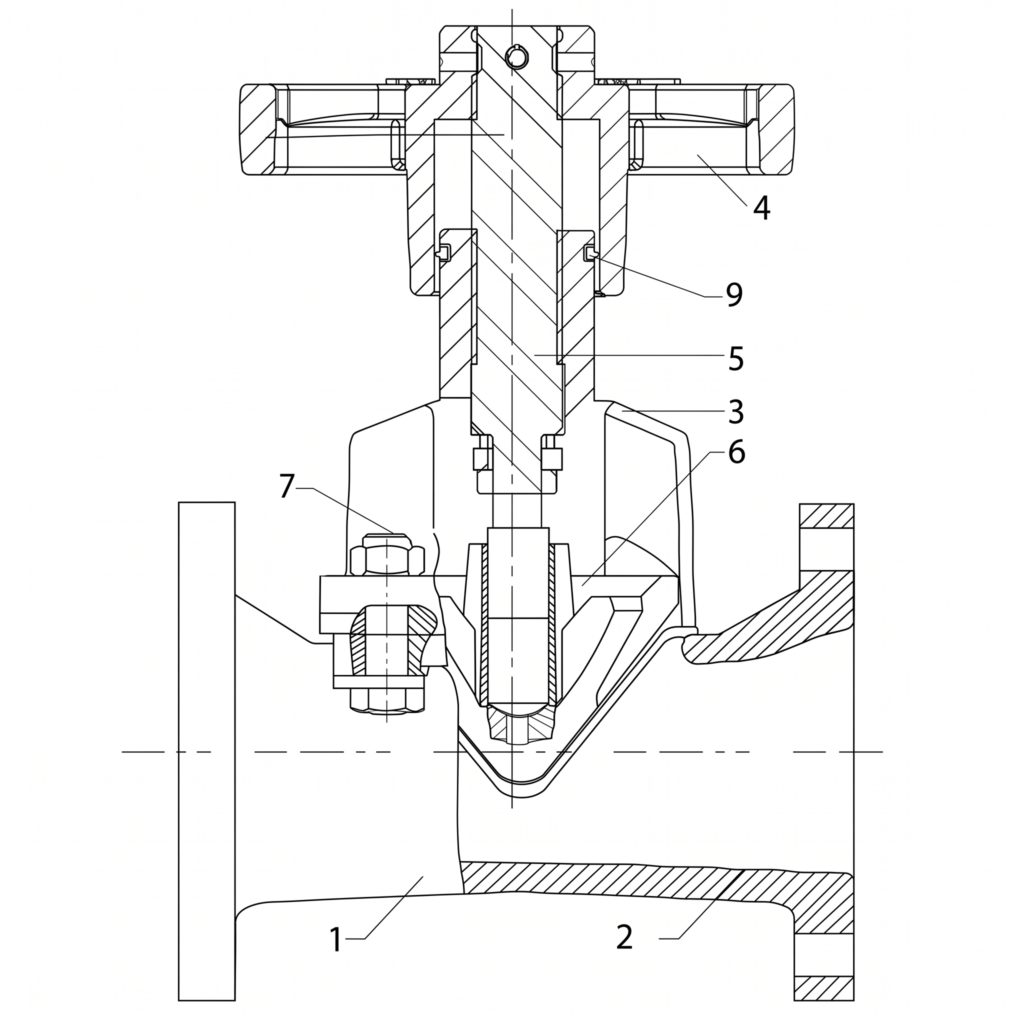

MATERIALS OF CONSTRUCTION
