KDV WEIR TYPE DIAPHRAGM VALVE

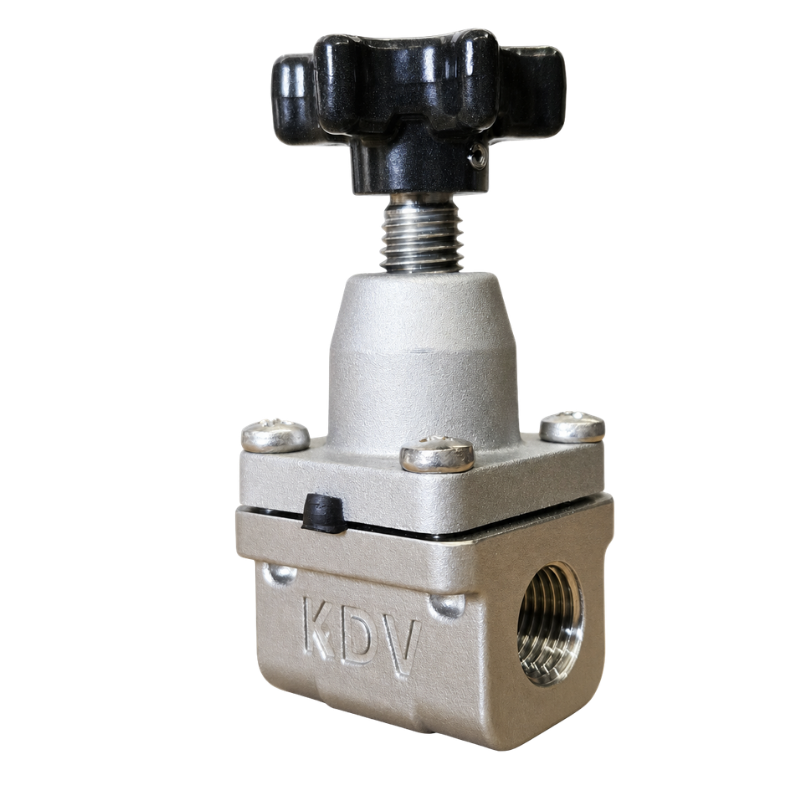

MiniVal Mini Diaphragm Valve
KDV MiniVal is a compact mini diaphragm valve designed for reliable, bi-directional flow control in applications where space and process isolation are important. Its diaphragm design isolates line media from the valve’s mechanical components while providing bubble-tight shutoff, low fugitive emissions and easy maintenance.
FEATURES AND BENEFITS
- Bubble-tight shut off
- Easy/low maintenance
- Readily available spare parts
- In-line serviceable (top entry)
- Excellent control characteristics
- Low fugitive emissions
- No stem leakage
- Line media isolated from valve mechanicals
Applications for MiniVal Diaphragm Valves
- Water and waste water
- Gases (e.g. compressed air)
- Lubricating oil
Nominal Size:
1/4″ (DN8) and 3/8″ (DN10)
Face to Face:
BS, DIN, MSS
Flange Drilling:
ANSI B2.1 NPT
AS1722.1 Part 1 BSPP
Pressure:
1/4″ (DN8) – 3/8″ (DN10) (Elastomer Diaphragm)
*16 Bar (1600 kPa | 232 PSI)
Design Standards:
EN13397-2001 (BS5156:1985)
MSS SP88-1993-(R-01)
Testing Standards:
EN12266-1 2002(BS6755 Part 1)
MSS SP88-1993-(R-01)
DIAPHRAGM MATERIALS
10 – Natural rubber (NR)
20 – EPDM/Black Ethylene Propylene Rubber
22 – EPDM / Food Grade (FDA)
30 – Butyl Rubber IIR Chlorobutyl – Isobutylene Isoprene Halogenated
40 – Nitrile Rubber NBR Acrylonitrile Butadiene Rubber
50 – Neoprene CR Chloroprene Rubber
60 – Hypalon CSM Chlorosulfonated Polyethylene
70 – FKM/Viton FPM Fluorinated Elastomer

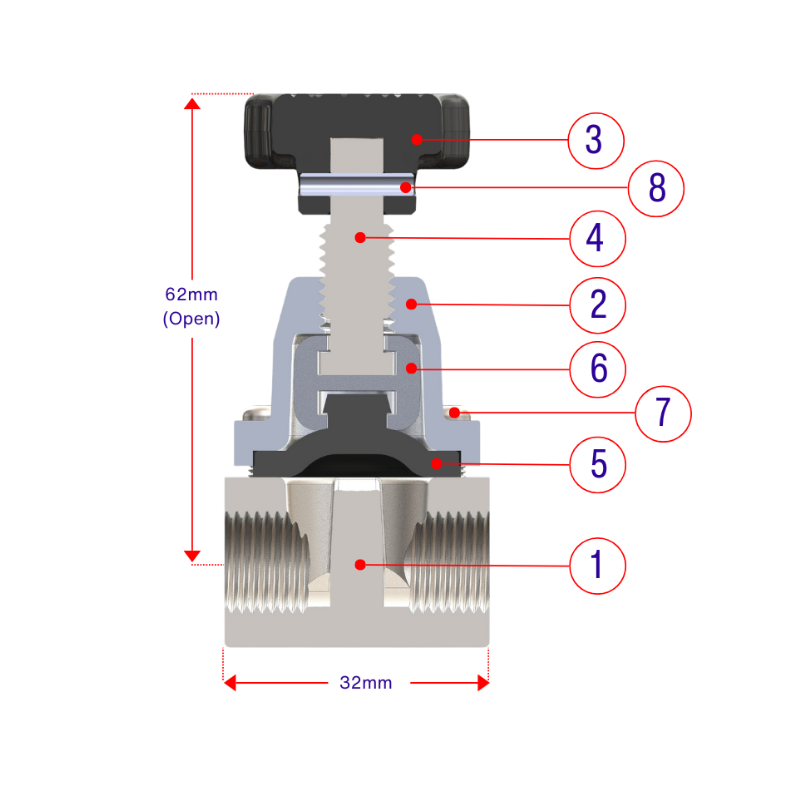

MATERIALS OF CONSTRUCTION
