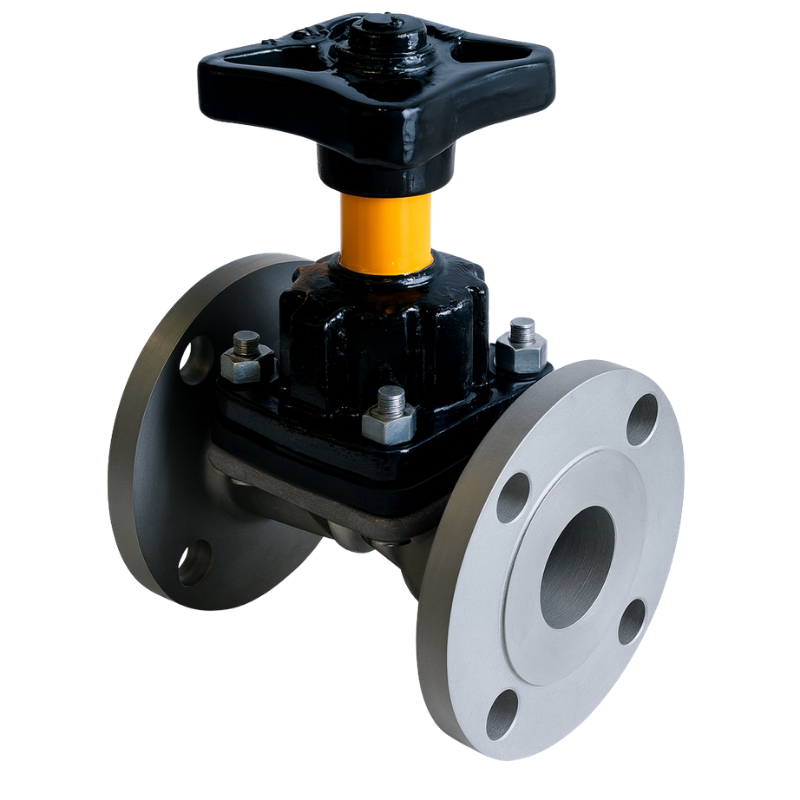

KDV WEIR TYPE DIAPHRAGM VALVE
WCB & Stainless Steel Weir Type Diaphragm Valve
KDV’s Stainless Steel Diaphragm Valve is available in WCB and stainless steel configurations for reliable flow control across demanding industrial applications. The Weir Type design isolates process media from the valve’s mechanical components, providing dependable operation with a range of body, diaphragm, and handwheel configurations.
FEATURES AND BENEFITS
- Bubble-tight shutoff (Class VI)
- Cavity free design
- Easy/low maintenance
- In-line serviceable (top entry)
- No stem seal leakage
- Standard Position indicator
Applications for WCB & Stainless Steel Diaphragm Valves
- Water and waste water
- Organic sludge
- Effluent treatment
- Lime solutions
- Gases (e.g. compressed air)
- Lubricating oil
Nominal Size:
DN15 – DN350
Face to Face:
BS, DIN, MSS
Flange Drilling:
ANSI#125/150, PN10/16, Table D/E, JIS
Pressure:
Up to 16 Bar (Elastomer Diaphragm)*
Up to 10 Bar (PTFE Diaphragm)*
*Max pressure varies across size range
Design Standards:
EN13397-2001 (BS5156:1985)
MSS SP88-1993-(R-01)
Testing Standards:
EN12266-1 2002(BS6755 Part 1)
MSS SP88-1993-(R-01)
DIAPHRAGM MATERIALS
10 – Natural rubber (NR)
20 – EPDM rubber
30 – Butyl rubber (IIR)
40 – Nitrile rubber (NBR)
50 – Neoprene rubber (CR)
60 – Hypalon rubber (CSM)
70 – Viton rubber (FKM/FPM)
92 – PTFE/EPDM backed
93 – PTFE/Butyl backed
96 – PTFE/Hypalon backed
97 – PTFE/Viton backed
98 – PTFE/Silicon backed
9D – TFM/PVDF/EPDM (3 PIECE)
9R – TFM/PVDF/EPDM (3 PIECE
with titanium Connector)
NB: Vacuum grade diaphragms available on request

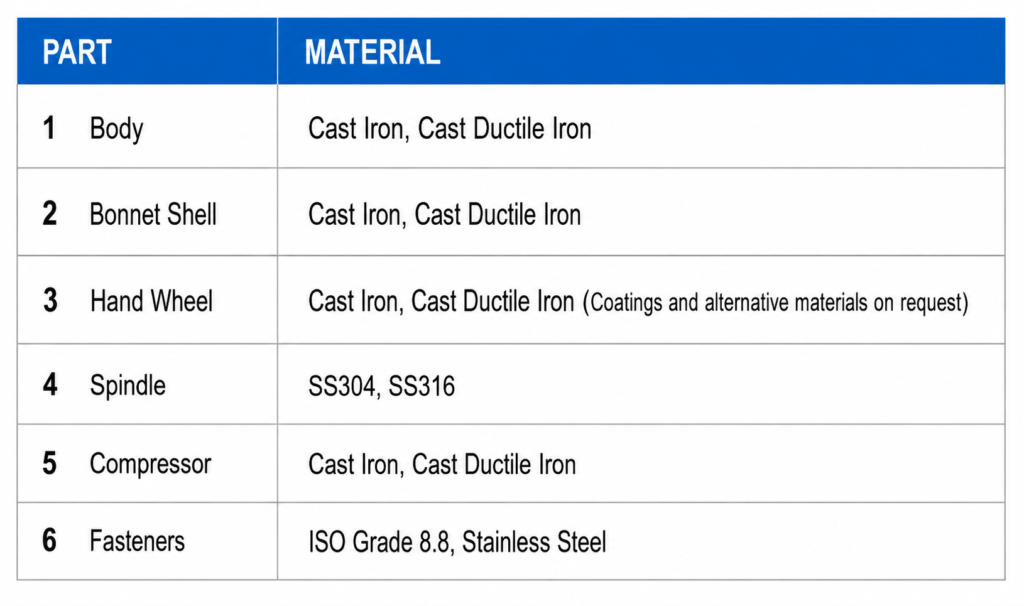

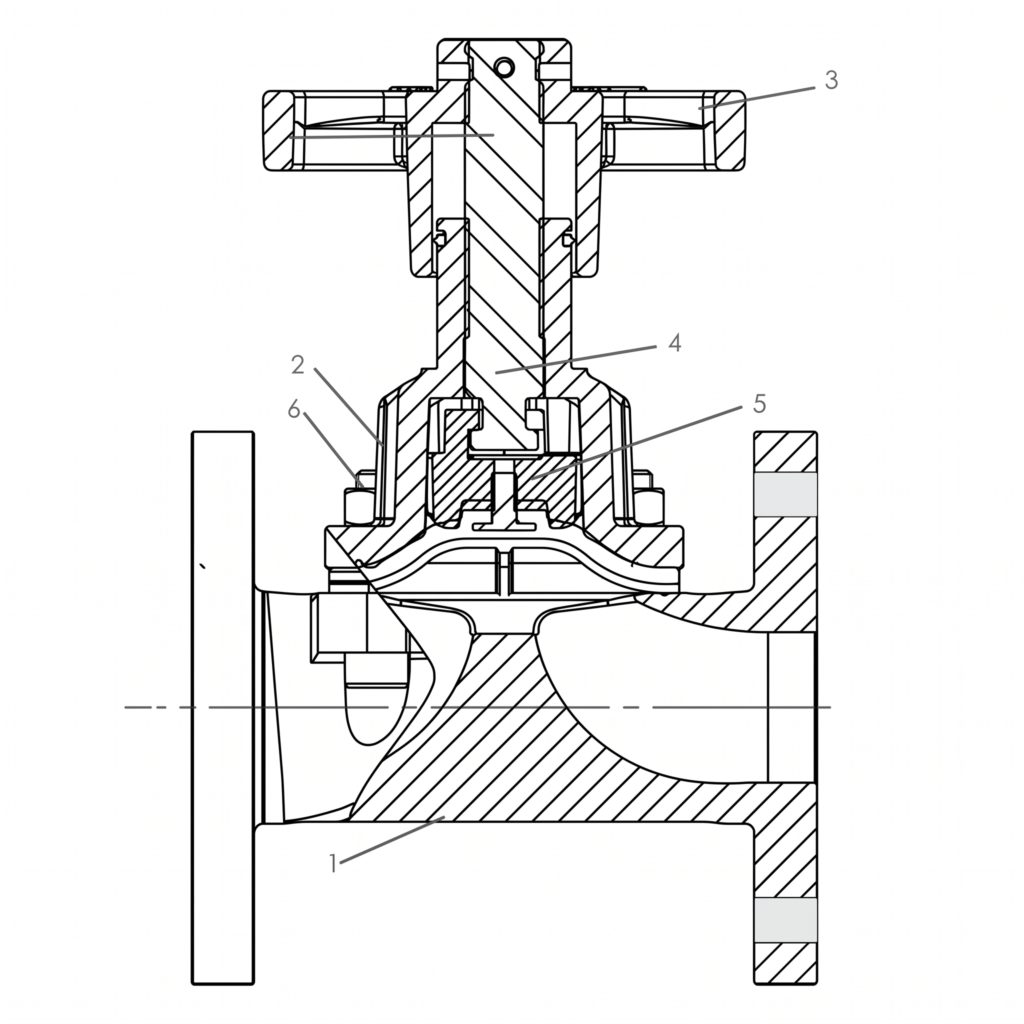

MATERIALS OF CONSTRUCTION
